Modular mechanics
Conveying, weighing, rejection, filling and guarding are combined by project.

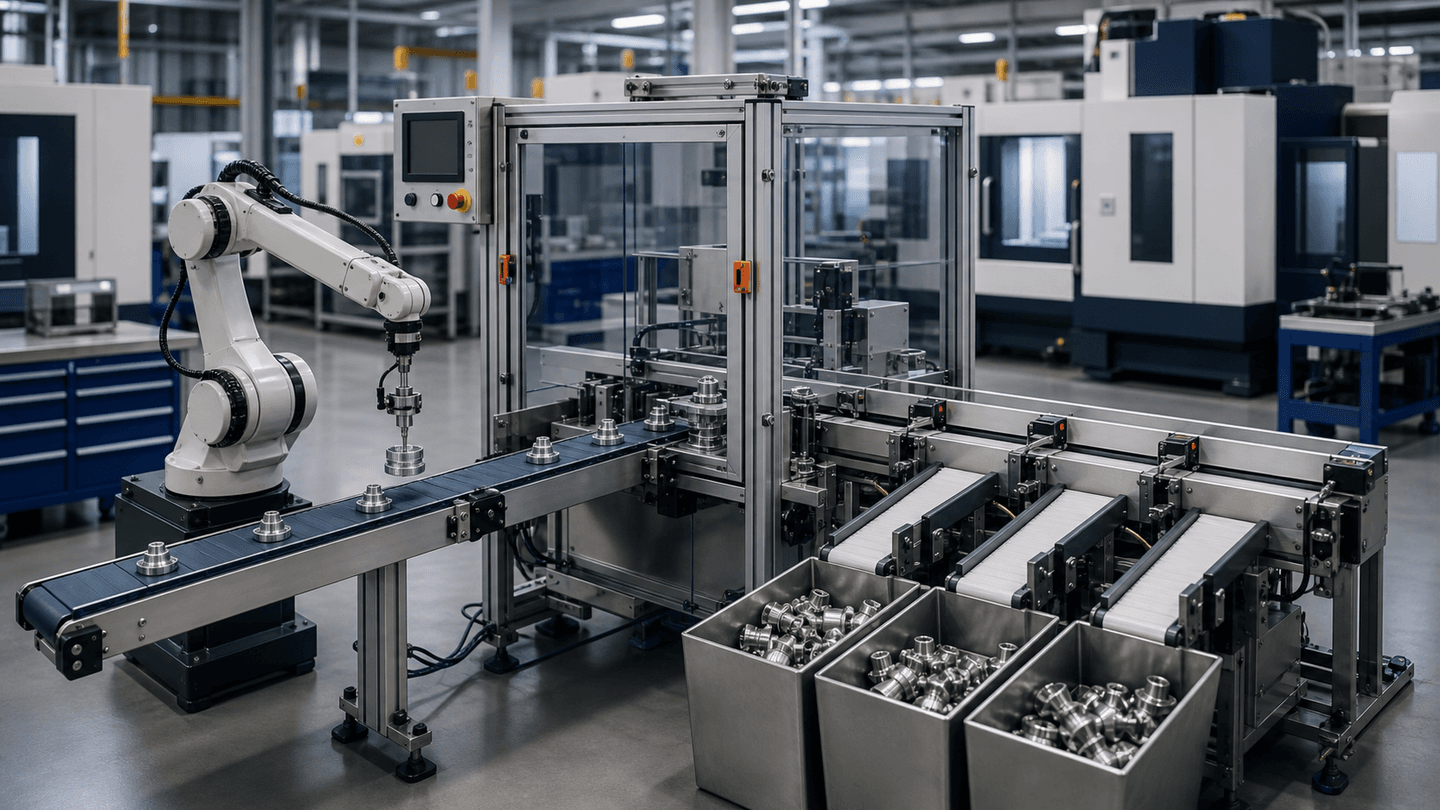

WS-12INDUSTRIAL WEIGHING SYSTEM
Weight Sorting System
WS-12
Multi-grade sorting, diversion and rejection based on configurable weight bands.
RANGE20g–100kg
ACCURACYApplication specific
SPEEDUp to 240 pcs/min
- Up to 12 sorting grades
- Lane-level statistics and batch traceability
- Modular sorting mechanism
SYSTEM OVERVIEW
Configured around line speed, accuracy and integration.
Weighix does not force one standard machine onto every line. Selection considers product stability, center of gravity, size, throughput, vibration, environment, cleaning and data interfaces.
Built for production
Construction, protection, electrical and materials adapt to food, chemical or general industry.
Open data interfaces
Control signals, protocols, barcode, labeling and enterprise systems.
PROCESS FLOW
From product entry to a traceable record.
Product entry
Sensors identify the product and synchronize line timing.
Dynamic weighing
The weighing module captures a stable weight signal.
Decision
The controller compares actual weight with target and tolerance.
Action
Pass, reject, alarm or divert based on the result.
Data upload
Record weight, time, batch and inspection result.
TECHNICAL SPECIFICATIONS
Project parameters are finalized after sample and site review.
ModelWS-12
ApplicationWeight Sorting System
Weighing range20g–100kg
AccuracyApplication specific
ThroughputUp to 240 pcs/min
Packages / materialsLoose Product · Box · Parcel
Communication & integrationPLC · MES · Barcode
ConstructionStainless or industrial construction, configured by environment
Operator interfaceBilingual touchscreen HMI
Data recordsIndividual / batch / alarm / recipe
SYSTEM INTEGRATION
The weighing system is not an island.
Data flow and permissions can be defined across device, control, production and enterprise layers.
WS-12WEIGHING SYSTEM
MODBUS / I/O / ETHERNETPLC + HMILINE CONTROL
OPC UA / API / SQLMES · ERPPRODUCTION SYSTEMS
REPORTINGDATAHUBTRACEABILITY
TECHNICAL DOCUMENTS
Documents for selection, integration and maintenance.
WS-12 technical datasheet
PDF · 2.4 MBApplication selection questionnaire
PDF · 1.1 MBCommunication and integration guide
PDF · 3.8 MBRELATED SYSTEMS
Other configurations in this product family.
MPW-SeriesPROJECT INQUIRY
Configure Weight Sorting System for your line.
Share sample weight, dimensions, line speed, accuracy and site images so we can confirm dynamic performance and machine design.
